Two-Platen Injection Molding Machine-650B~4000B
●
GUANGDE have got a professional team for most of exact product application to do customized solutions so that create maximum values for our clients.
Product consultationProduct description

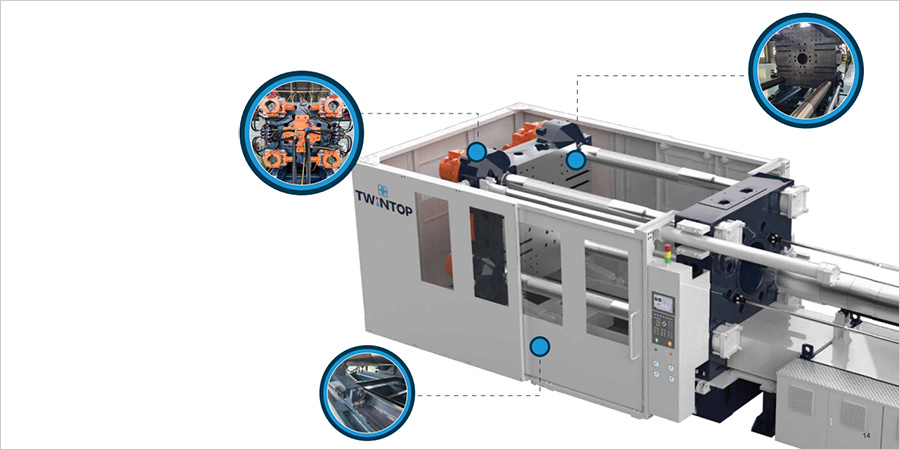

CLAMPING UNIT
● Four clamping cylinders with average output to reduce product shrinkage and deformation.
● Large space between tie bar & long distance of opening stroke, which is especially good for products with big or deep size.
● Sliding foot design, stable action, and easy maintenance and adjustment.

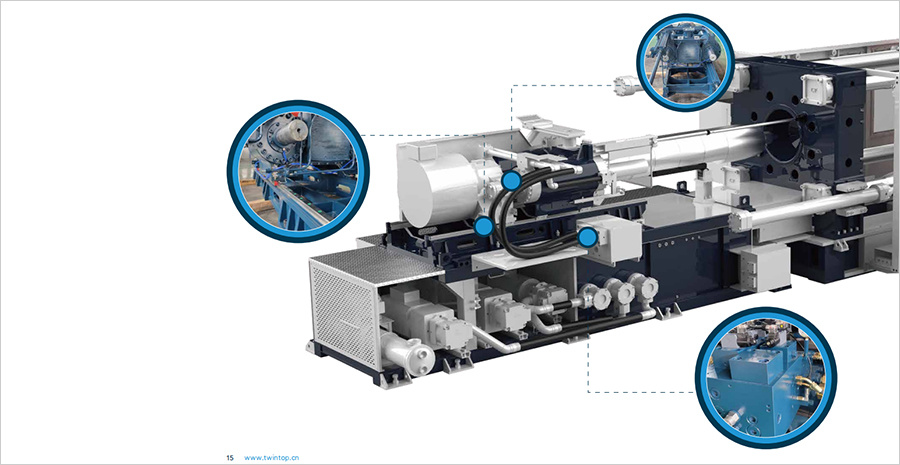

INJECTION UNIT
● The high rigid linear guideway realizes its function of lower resistance and ensures the injection unit stable and durable.
● The injection unit is stable and accurate by applying double cylinders.
● Proportional valve controls the back pressure for highly precise production.

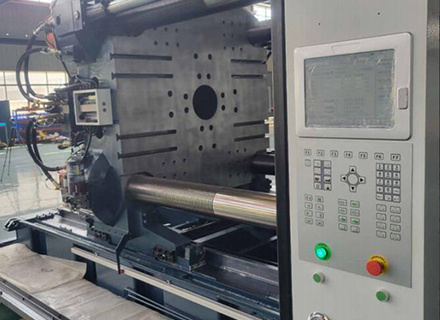

CONTROL SYSTEM
● 1.Easy to operate.
● 2.Clear function on panel.
● 3.Stable and reliable quality.
● 4.Networking and monitoring.
HYDRAULIC SYSTEM
● 1.Quick and stable mould height adjustment.

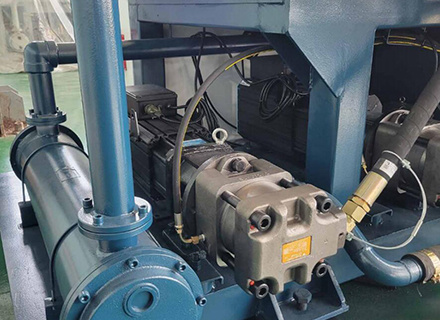

● 2.Different from traditional proportional pump, our machine can save 30%~70% power by applying servo system, subject to different kinds of products.

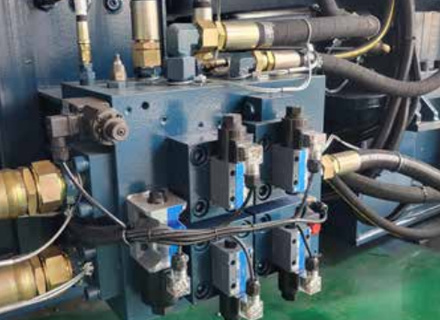

● 3.Responding fast by the design of logical valve, large flow through the block, oil temperature is not easy to rise.
● 4.Oil hose installation riot chain, in line with European regulations.
● 5.Convenient for repairing and maintenance.
FUNCTION LIST
Injection Unit
Function Description
●Standard
◎Option
Standard screw
●Double balance cylinder by injection structure
●Display screw rotation speed
●Plasticizing by hydraulic motor
●Backpressure by proportional valve
●Display injection pressure curve
●Barrel supporting device
●Feed zone temperature monitoring
◎Purger guard
◎Material-putting platform
◎Centralized lubrication
◎Ceramic heater
◎Infrared heating ring
◎Gas assisted injection interface
◎Hopper
◎Stainless steel hopper
◎Extended nozzle
◎Needle shut-off nozzle
◎Plasticizing by servo motor
◎Plasticizing by servo motor and gear box
◎Clamping Unit
Function Description
●Standard
◎Option
T-slot template
●Intractive clamping device
●Hydraulic & electric interlock device
●Hydraulic safety protection
●Automatic adjustment of mould height
●Mold open & close and ejector transducer control
●Automatic centralized lubrication of quantitative
●Adjustable sliding feet
●High rigidity rail board
●Automatic safety door
●One set maniflod
●2 sets of core pulling on moving platen
●Safety pedal device
●Screw hole template
◎European standard template
◎Tie bar puller system
◎Perspective maniflod
◎Quick coupling maniflod
◎Air valve
◎Sequence vavle
◎Mold Opening and ejection synchronization
◎Mold Opening and charging synchronization
◎Highten frame
◎Increase mold opening stoke
◎Decrease mold closing stoke
◎Pick up platform device
◎Hydraulic Unit
Function Description
●Standard
◎Option
Servo motor system
●Oil suction locked device
●Increase pump motor capacity
◎Accumulator rapid injection
◎Inject servo Valve
◎Oil level alarm
◎Cold water valve
◎Electric Unit
Function Description
●Standard
◎Option
DIHZHOU controller
●Real time working condition monitor
●Monitoring for production data
●Automatic shows error
●Injection pressure transfer holding function
●I/O monitoring display
●Three-color warning light
●Servo motor overload protection
●Emergency stop button or safety door
●380V/16A 5-core power socket 2 sets
●220V/16A 3-core power socket 1 set
●Cold start protection
●Heating solid relay control
●Real time mold clamping force monitor
●Computer network central control system
●KEBA controller
◎380V/32A 5-core power socket
◎380V/16A 5-core power socket
◎220V/16A 3-core power socket
◎Servo power system transformer
◎Euromap 12 manipulator interface
◎Euromap 67 manipulator interface
◎Hot runner control and interface
◎Protective light grid device
◎Safety relay monitoring
◎Others Function Description
●Standard
◎OptionStandard color
●Adjustable leveling pad
●Manual book、Clamping bar、Standard spare parts
●Quick mould change system
◎Anchor bolt
◎Special color
◎Robot
◎Hopper magnet
◎Chiller
◎Mold temperature controller
◎Dehumidifier
◎Auto-loader
◎Crusher
◎Blender
◎Dryer
◎
